NO2/C-1 NO2/C-20 NO2/C-500 NO2/CA-2 Nitrogen Dioxide Gas Sensor Electrochemical Gas Sensor Highly Sensitive NO2 Measurements Continuous Air Quality

  • 1
  • 2
  • 3

Model Number : NO2/C-1 NO2/C-20 NO2/C-500 NO2/CA-2

MOQ : 1

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Delivery Time : 3-5work days

Operation Principle : 3-Electrode Electrochemical

Nominal Range : 0 - 1 ppm

Maximum Overload : 10 ppm

Output Signal : - 2500 ± 1000 nA/ppm

Resolution (Electronics dependent) : < 0.02 ppm

T90 Response Time : < 60 s

Typical Baseline Range (pure air, 20°C) : -0.05 ppm to 0.05 ppm

Maximum Zero Shift (+20°C to +40°C) : see Graph

Contact Now

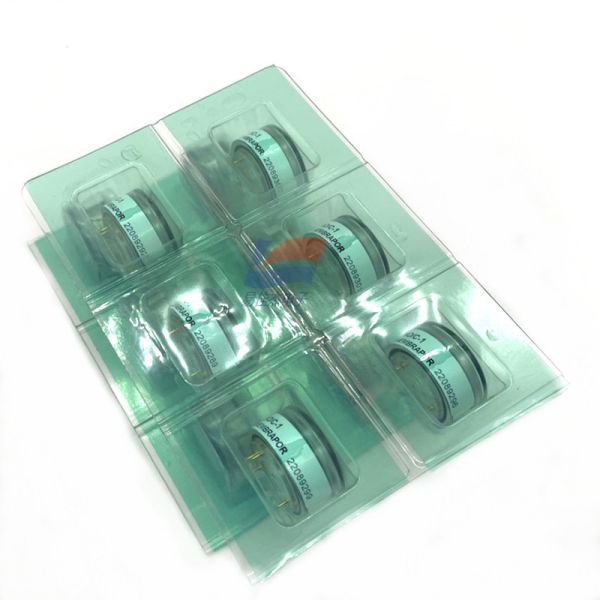

Nitrogen Dioxide Gas Sensor NO2/C-1

NO2 Gas Sensor in Compact Housing

Key Features:

• Highly sensitive NO2 measurements

Applications :

• Continuous Air Quality Monitoring

• Safety and Environmental Control

Repeatability < 2 % of signal
Output Linearity Linear
Rec. Load Resistor 10 - 33 Ω
Bias (V_Sens-V_Ref) not recommended
Conformity to RoHS directive RoHS Compliance
Relative Humidity Range * 15 % to 90 % RH non-condensing
Temperature Range -40 °C to 50 °C
Pressure Range Atmospheric ± 10%

NO2/C-1 NO2/C-20 NO2/C-500 NO2/CA-2 Nitrogen Dioxide Gas Sensor Electrochemical Gas Sensor Highly Sensitive NO2 Measurements Continuous Air Quality
